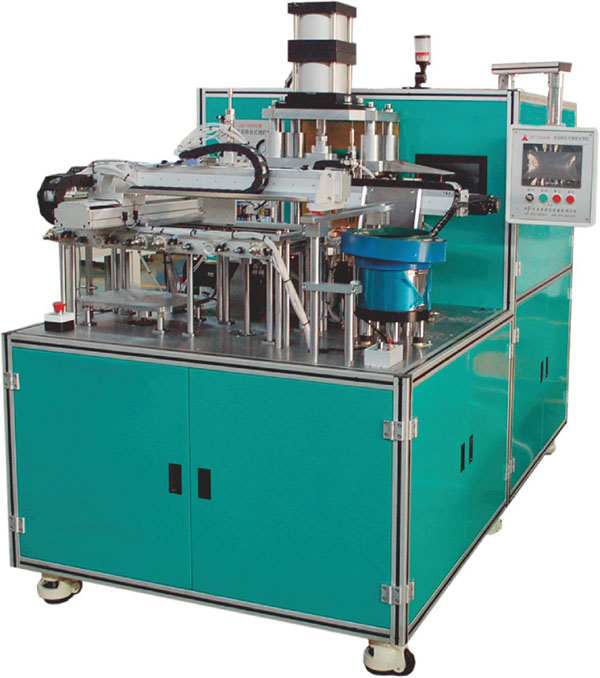

（全自动）DRF-7000S型 转台式全自动真空脉冲封焊机

DRF-7000S Turntable Automatic Pulse Welding Machine

本机主要应用于石英晶体、声表滤波器、传感器、晶体管抽真空充氮气密性封焊，可以用来焊接有色金属、电真空器件、电机热保护器的抽真空充氮气封焊。采用进口PLC程控，触摸屏控制，六工位高精度转盘式设计，自动上料、自动焊接、机械手自动取出合格和不合格分检在不同工位上同步工作，极大提高了工作效率，同时又提高了操作安全性。采用米亚基焊接电流监测仪，自动化程度高。

This machine is mainly used for vacuum seal welding of quartz crystal,SAW filter, sensor and transistor,and can be used for welding non-ferrous metal,electric vacuum device and motor thermal protector.It adopts imported PLC and touch screen control,turntable high-precision six-stations design, automatic feeding, automatic welding,automatic segregation of qualified and unqualified workpieces in different stations,greatly improving the work efficiency.Improved operational safety.Using Miyaki welding current monitor,high automation.

技术参数/Technicai Parameters




电源电压Supply voltage	AC380V±10% 50Hz
气源压力Air pressure	0.5~0.7MPa
充电电压Charging voltage	0~1000V DC
储能能量Energy storage	7000J6000J
电容容量Capacitance	14000uF
输入电流Input Current	20A
工位数Workstations	6
