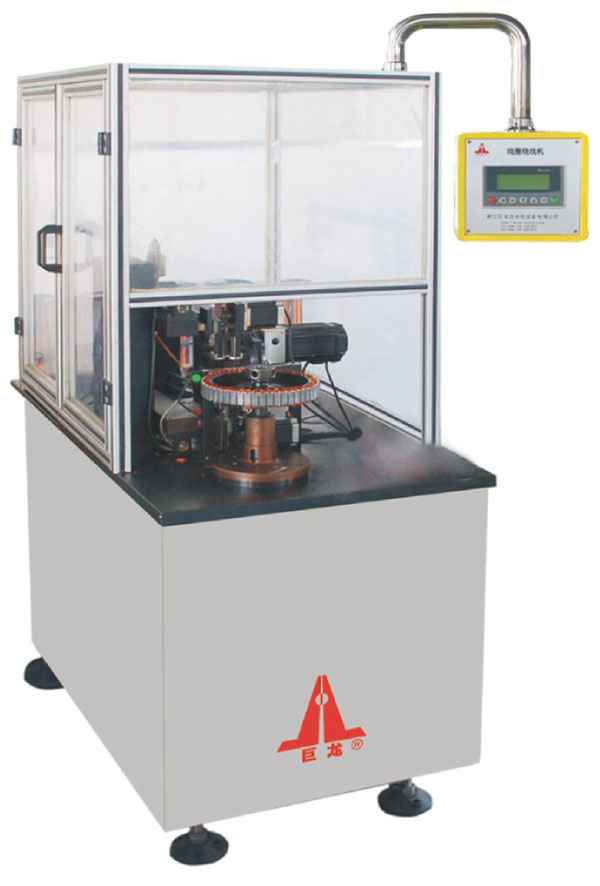

（单工位）ESW-1型 定子绕线机
ESW-1 Electric Bicycle Wire Winding Machine
适用于电动车定子的自动绕线。采用人工放入工件，人工定位、自动分度、仿人工嵌入式绕线、人工剪线、PLC程控、触摸屏修改参数。
Suitable for the electric bicycle stator automatic winding. Manual put workpiece, manual positioning, automatic indexing. Winding in imitation of manual embedding ,manual cutting wire, PLC , touching screen changing paramters.
技术参数/Technicai Parameters
| 电源电压Supply voltage |
AC380V±10% 50Hz |
|
气源压力Air pressure |
0.5~0.7MPa |
|
功率Total power |
2kw |
| 定子外径Stator Outer Diameter | Φ198/Φ266mm |
|
定子叠厚Amature Depth |
14~50mm |
|
可绕线径Wire Diameter |
0.3~0.6mm |
|
可绕线根数Number of wire |
1-13 |
