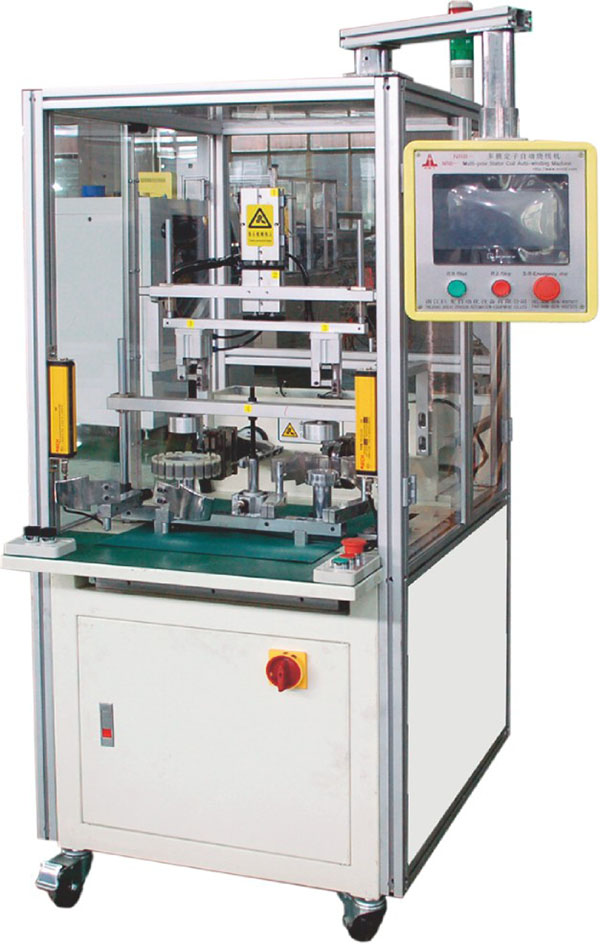

(外绕/拼块式)WPR- 2/4型 定子自动排绕机

上传时间:2019-06-04



WPR-2/4  Stator Coil Arraying and Winding Machine



本机用于无刷电机外绕定子的自动绕线,更换工装后可绕不同的电机定子,工作后可自动绕线,排线,分度,拉线入槽,自动剪线等动作,实现全自动绕线,排列整齐,绕线速度快,生产效率高。工业级人机界面,彩色触摸屏操作。专业化界面设计,操作方便快捷。     嵌入式模块化设计,功能强大,客户可根据自己需求自行编程。以EEPROM存储,最短保持十年。



This machine is used for automatic outer winding of the brushless motor stator. It can wind different motor stators by replacing the tooling. It can automatically wind, array, index, pull the wire into the slot, trim the wire etc. It comes out coils neatly arranged, with fast winding speed and high production efficiency. Industrial-grade human-machine interface, color touch screen operation. Professional interface design, easy to operate. The embedded modular design is powerful and can be programmed by the customer according to his own needs. The memory is kept in a battery-free design and stored in EEPROM for a minimum of ten years.




技术参数/Technicai Parameters


电源电压Supply voltage

AC220±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

绕线电机 Winding motor

1kw

排线电机 Arraying motor 0.75kw

定子外径 Stator OD

Φ30~Φ100

定子厚度Stator thickness

10~50mm

适绕线径Suitable wire size

Φ0.2~Φ2.0
