(内排绕)NRB-2/4型 多极定子自动排绕机

上传时间:2019-06-04



NRB-4 Multi-pole StatorCoil Auto-winding Machine

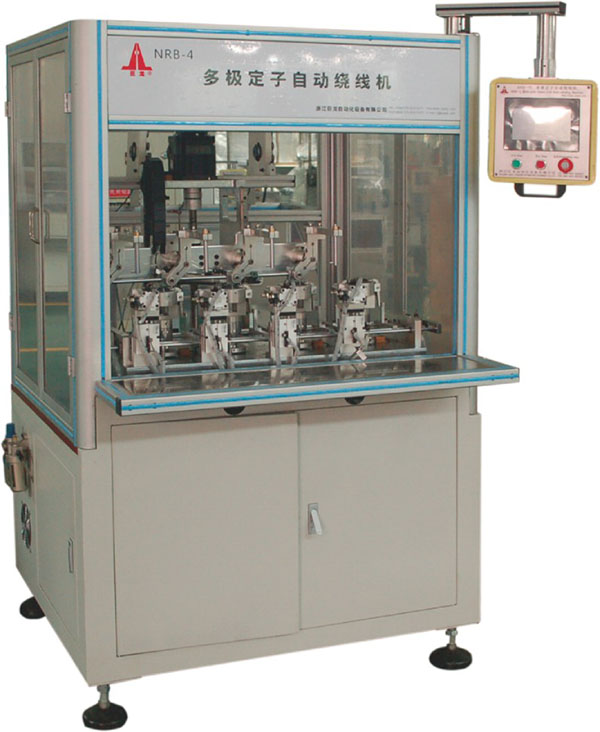

本机用于变频电机,无刷直流电机多极定子内绕组绕线,能将漆包线直接绕入定子线槽内。采用三菱PLC控制,彩色触摸屏修改参数,四工位装置,伺服电机绕线,飞叉的绕线角度,可根据定子叠厚,槽数和嵌线间隙灵活调节,工作可靠,生产效率高。



This machine is used in the frequency conversion motor, the brushless DC motor multi-pole stator winding winding, can enameled wire directly into the stator slot. It adopts Mitsubishi PLC control, color touch screen to modify parameters, four-position device, servo motor winding, flywheel winding angle can be flexibly adjusted according to stator thickness, slot number and embedded wire clearance, reliable work and high production efficiency.




技术参数/Technicai Parameters


电源电压Supply voltage

AC220±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

可绕线径Wire range

Φ0.1~1.5mm/Φ0.1~1.0mm

定子外径Stator OD

≤Φ120mm  / ≤Φ90mm

定子内径Stator ID

≥Φ30mm

槽口宽度Slot width

≥2.2mm

    特殊规格可定制Special specifications can be customized
