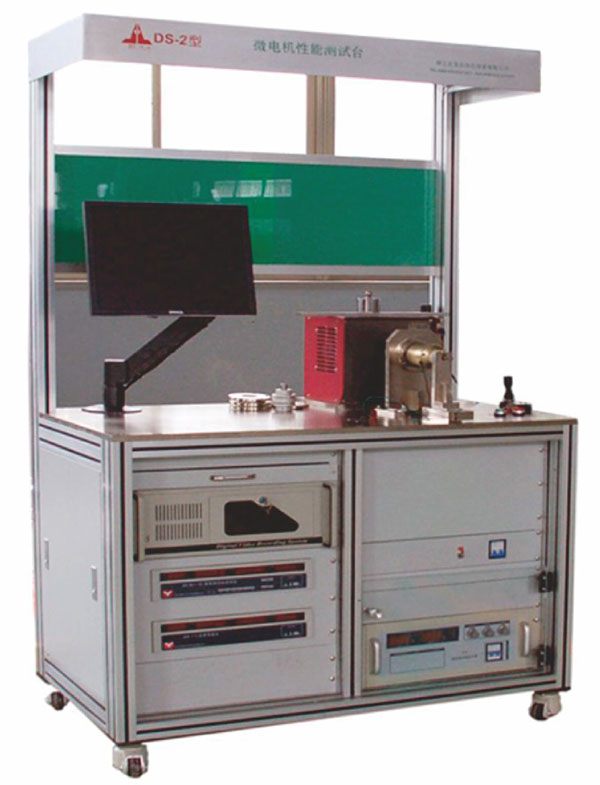

DS-2型 电机特性试验台
DS-2 Micro Motor Features Testing Platform
适用于微电机整机多项参数的性能检测和储存数据报告及打印。 采用工业级应用系统,微电脑控制、全数字设定,有手动或自动加载。对电机的转速、电流、电压、转矩、功率、效率参数进行准确测量并打印特性曲线,储存数据,本机由磁滞测功机、激光打印机、电量仪、控制仪和稳压电源组成,操作简单方便。
It is suitable for the performance test and storage data report and printing of many parameters of the whole machine. Using industrial-grade application system, microcomputer control, all-digital setting, manual or automatic loading. The machine is
composed of magnetic hysteresis dynamometer, laser printer, electric quantity meter, controller and power supply. It can measure the speed, current, voltage, torque, power and efficiency of the motor accurately and print the characteristic curve, Operation is simple and convenient.
技术参数/Technicai Parameters
电源电压Supply voltage |
AC220±10% 50Hz |
气源压力Air pressure
|
0.4~0.7MPa |
转矩Torque |
0.2/0.5/1/2/5/10/20N.m |
转速Rotating speed |
0~15000r/min |
直流电流DC current |
0~100A DC |
直流电压DC voltage |
0~30V DC |
特殊规格可定制Special specifications can be customized |
