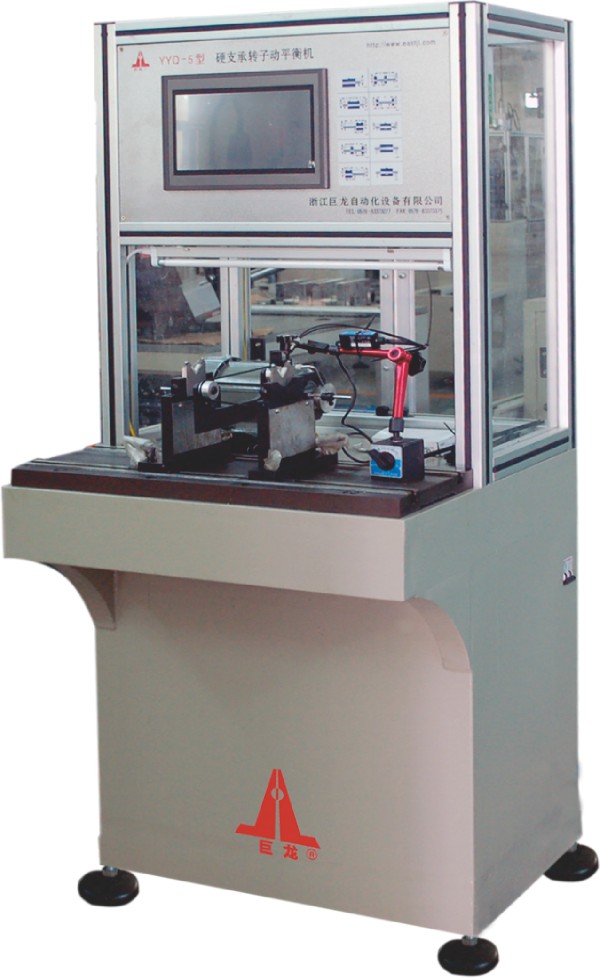

YYQ-5型 硬支承转子动平衡机
YYQ-5 Hard-bearing Rotor Balance Machine
本机广泛应用于各类微型电机转子、叶轮、曲轴,滚筒及轴类等旋转工件的平衡校正。本机采用触摸屏修改技术参数,显示直观,采用圈带驱动,保证了工件的平衡质量及精度、具有装卸方便、启动快、工作效率高等特点。
The machine is widely used in various types of micro-motor rotor, impeller, crankshaft, drum and shaft and other rotating parts ofthe balance correction. This machine adopts the touch screen to modify the technical parameters, display intuitionistic, and adoptthe belt drive to ensure the balance quality and precision of the workpiece. It has the characteristics of convenient loading and unloading, quick start and high working efficiency.
技术参数/Technicai Parameters
电源电压Supply voltage | AC220±10% 50Hz |
总功率Total power |
1kw |
转子外径Rotor OD |
≤Φ100mm |
转子轴径Rotor shaft diameter | Φ3~Φ30mm |
平衡转速Balancing speed |
800~5000r/min |
不平衡量Unbalance |
0.3g/kg |
工件重量Workpiece weight |
≤Φ3kg |
