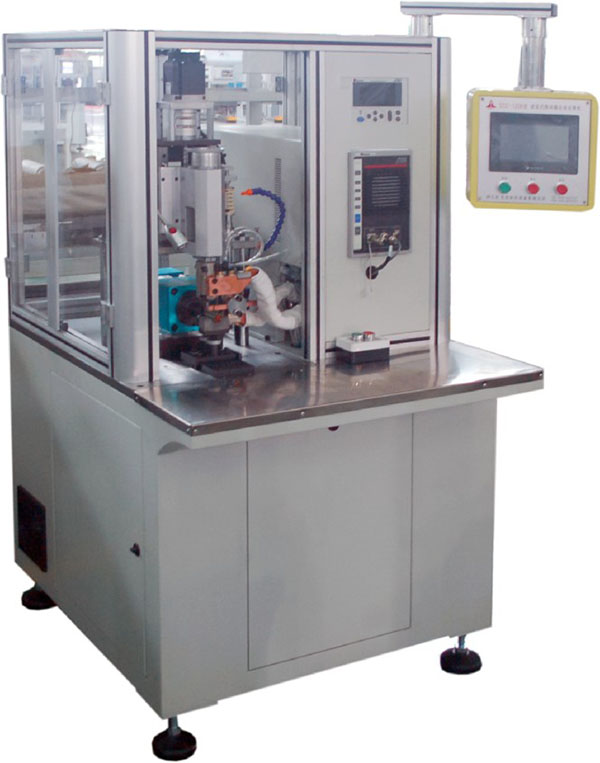

(米亚基逆变直流焊接电源伺服加压)SDZ-300BS型 换向器自动点焊机

上传时间:2019-06-04





SDZ-300BS DC output Automatic Commutator Spot Welding Machine



本机是专为电机换向器与较粗电枢绕组连接的一种专用焊接设备。采用进口PLC控制器和触摸屏显示器控制焊机动作,伺服电机力矩控制方式加压,通过同步带轮带动丝杆控制焊接,在单个焊点可分别设定压力,配置大功率米亚基逆变焊机联合控制、可定电流、定功率、定电压等控制、多种焊接规范编号、多段通电方式。具有电流缓升、缓降功能。能通过各段焊接电流的合理选择来达到高质量的焊接,工件机械定位对槽,可设定角度补偿,配有内置冷却水箱,进口电磁阀控制焊接气缸,快速稳定,所有动作一次完成,操作简单,性能优越,焊接质量高。



This machine is designed for motor commutator and thicker armature winding connection of a special welding equipment.Imported PLC controller and touch screen display control welding action, servo motor torque control mode pressure, driven by synchronous pulley screw control welding, in a single solder joint can be set pressure, the configuration of high-power MMA sub-inverter welding Machine control, can be set current, constant power, constant voltage control, a variety of welding code number, multi-section power mode. With the current slow rise, slow down function. Can be selected by the reasonable choice of welding current to achieve high-quality welding, the workpiece mechanical positioning on the slot, can be set to the angle compensation, with built-in cooling water tank, import solenoid valve control welding cylinder, fast and stable, all actions once completed Simple, superior performance, high-quality welding.



技术参数/Technicai Parameters


电源电压Supply voltage AC380±10%  50Hz

气源压力Air pressure

0.5~0.7MPa

逆变器Rectifier(可选Optional)

IPB-5000   /   IS-300A

短路电流Short Circuit Current 5000A   /  10000A

可焊线径Wire diameter

Φ0.12~0.5mm/Φ0.5~1.2mm

转子直径Rotor Diameter

≤Φ90mm

轴径Shaft diameter

≤Φ17mm

换向器直径Commutator diameter

≤Φ40mm
