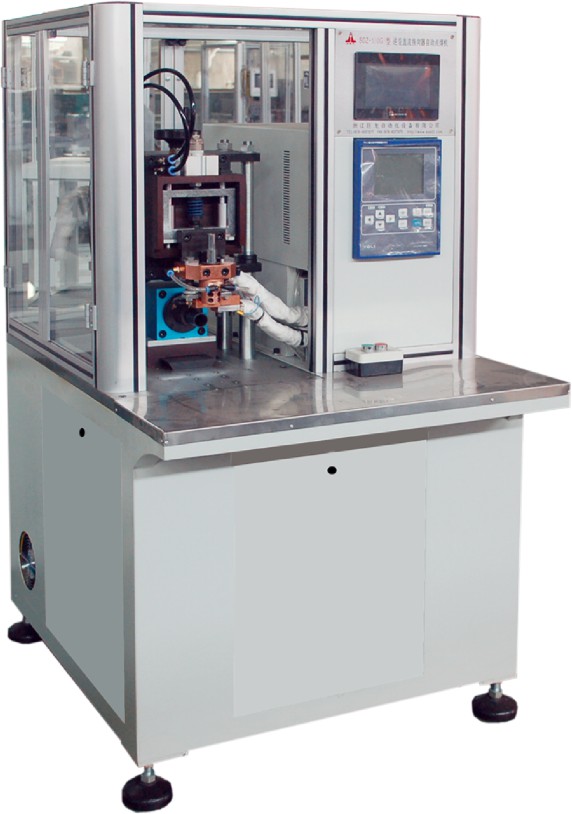

(国产逆变直流焊接电源气缸加压)SDZ-130G型 换向器自动点焊机

上传时间:2019-06-03



SDZ-130G DC output Automatic Commutator Spot Welding Machine



本机适用带钩或开槽电机换向器与转子导线的自动焊接。采用进口PLC控制器和触摸屏显示器控制焊机动作,配置国产逆变焊机控制、可定电流、定功率、定电压等控制,能通过各段焊接电流的合理选择来达到高质量的焊接,工件机械定位对槽,可设定角度补偿,所有动作一次完成,性能优越,焊接质量高。



 This machine is suitable for automatic welding of the commutator and the rotor wire with hook or slotted motor. It adopts imported PLC controller and touch screen display to control the welding machine movement. It is equipped with domestically produced inverter welding machine control, constant current, constant power and constant voltage control, a variety of welding code and multi-section power supply. With the current slow rise, slow down function. Can be selected by the reasonable choice of welding current to achieve high-quality welding, the workpiece mechanical positioning on the slot, can be set to the angle compensation, with built-in cooling water tank, import solenoid valve control welding cylinder, fast and stable, all actions once completed Simple, superior performance, high-quality welding.




技术参数/Technicai Parameters


电源电压Supply voltage

AC380±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

额定容量Rated Capacity

0~50kVA

焊接电流Welding current

10000A

转子直径Rotor Diameter

≤Φ90mm

可焊线径Wire diameter

0.12~1.2mm

轴径Shaft diameter

≤Φ17mm

换向器直径Commutator diameter

≤Φ40mm
