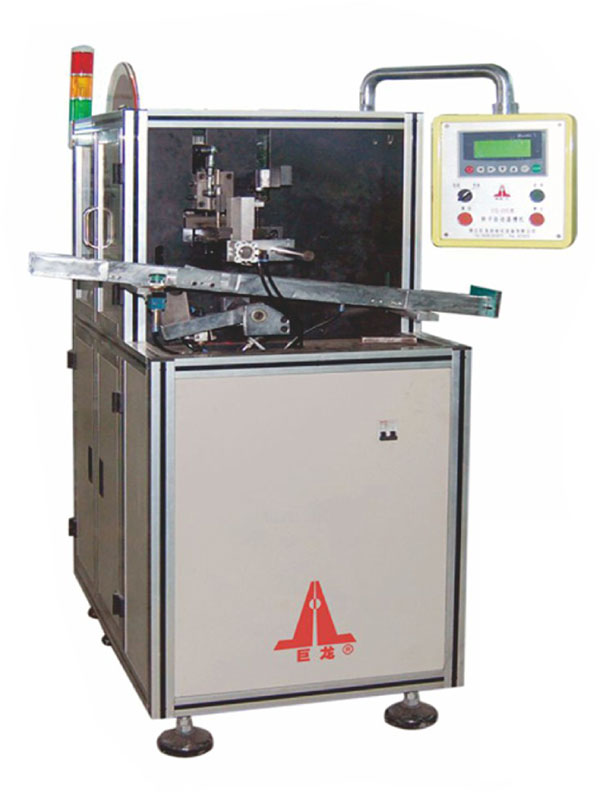

CQ-200型 转子自动盖槽机

上传时间:2019-06-03


CQ-200 Model Rotor Automatic Slot Covering Machine



本机适用于槽满率较松的微电机转子自动盖槽楔。采用变频无级调速机械联动设计,采用盘状定宽槽楔,自动定长切断、自动插入转子槽、分度、装夹、一次性完成,有满料感应停止功能,操作简单方便,生产效率高。



This machine is suitable for slot full rate of loosening the micro-motor rotor automatically cover groove wedge.The machine adopts variable frequency stepless speed adjusting mechanical linkage design. It adopts disc-shaped fixed width wedge, automatic fixed length cutting, automatic insertion of rotor slot, indexing and clamping, one-time completion, full material induction stop function, simple and convenient operation. efficient.

技术参数/Technicai Parameters


电源电压Supply voltage AC220±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

总功率Total power

1kw

工作行程Working stroke

20~80mm

铁芯厚度Core thickness

≤100mm

调频范围Frequency range

0~50Hz
