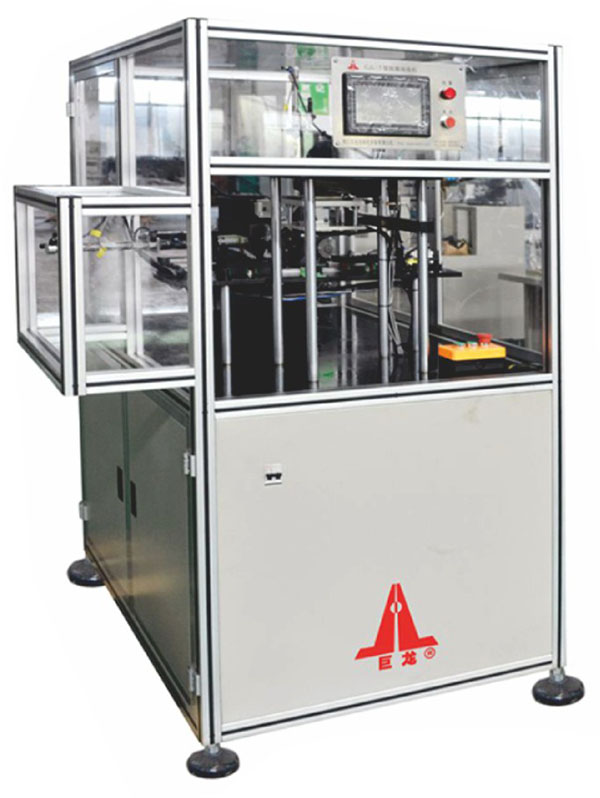

(扁平电机连线专用)CJL-7型 扁平线圈绕线机
CJL-7 Flat Coil Winding Machine
本机是专为扁平电机线圈自动连续绕线的专用设备。采用进口PLC程控,彩色触摸屏显示和修改参数,漆包线自动连续绕在成形模具上,一组绕好后自动断线,自动推入下线杆,采用伺服电机绕线,更换工装方便。
This machine is designed for flat motor coil automatic continuous winding of special equipment. The use of imported PLC program-controlled, color touch screen display and modify the parameters, enameled wire automatically wound around the forming mold, a group of around automatically after the break, automatically pushed into the lower pole, servo motor winding, easy tool change.
技术参数/Technicai Parameters
电源电压Supply voltage | AC220±10% 50Hz |
气源压力Air pressure |
0.5~0.7MPa |
总功率Total power
|
2kw |
可绕线径Wire range |
Φ0.2~Φ0.8mm |
过渡线长Transition line length |
20~100mm |
生产效率Productivity |
100秒/组 |
