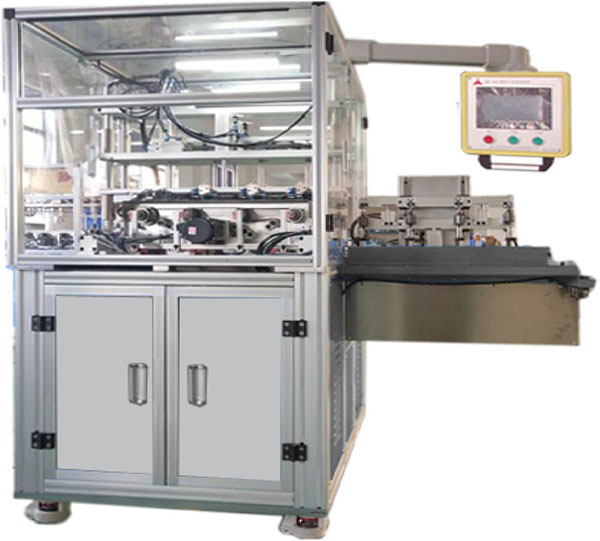

（4工位）ZB-304型 双飞叉全自动转子绕线机

ZB-304  Double Fork Automatic Rotor Winding Machine

本机适用于电机转子的自动绕线，采用四工位同步绕线结构，由两套主伺服电机一拖四及一套一拖四转位分度伺服电机及PLC控制系统，由手动上下工件，转子自动对槽定位后气动自动拉入绕线位，进行自动绕线、转位、挂钩、自动夹线、绕完后自动退出。人工取下工件，另一组转子自动插入定位座后又自动拉入绕线位，完工后自动退出，人工取下工件。

This machine is suitable for automatic winding of motor rotor. It adopts four-station synchronous winding structure. It consists of two sets of main servo motor of one for four type, one set of index servo motor one for four type and PLC control system. Manually put the workpiece, the slot is automatically positioned, rotors are automatically pulled into the winding position , the machine automatically winds, indexs, hooks, clamps, and exits after winding. The workpiece is manually removed, and the other set of rotors is automatically inserted into the positioning and then automatically pulled into the winding position. After completion, the machine automatically exits and manually removes the workpiece.

技术参数/Technicai Parameters
