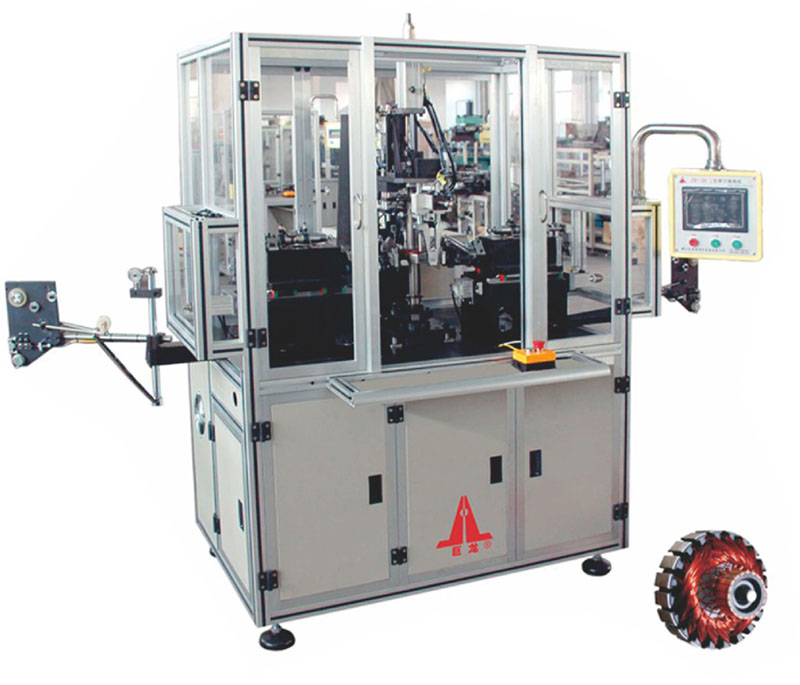

（扁电枢立式绕线）ZB-30L型 转子自动绕线机

ZB-30L  Rotor Automatic Winding Machine

适用于偶数槽电机带钩换向器转子的自动绕线。采用三菱三伺服系统，PLC程控，彩色触摸屏显示，立式结构绕线，人工放入工件，自动夹紧、定位、分度、绕线、挂钩、自动拉断，并配有剪刀自动剪线，所有流程连续工作，脱卸式更换工装，涨力松紧可调，绕线均匀，人工上下料，生产效率高。

It is suitable for automatic winding of the rotor of a commutator with slotted motor.Automatic alignment, indexing, winding, hook, automatic pull off, and equipped with a scissors automatic trimming line, automatic clamping, automatic positioning, indexing, winding, hook, automatic pull off, and equipped with a scissors automatic trimming line, , All processes work continuously, the use of detachable replacement tooling, tension adjustable tension, winding evenly, manual loading and unloading, high production efficiency.

技术参数/Technicai Parameters
