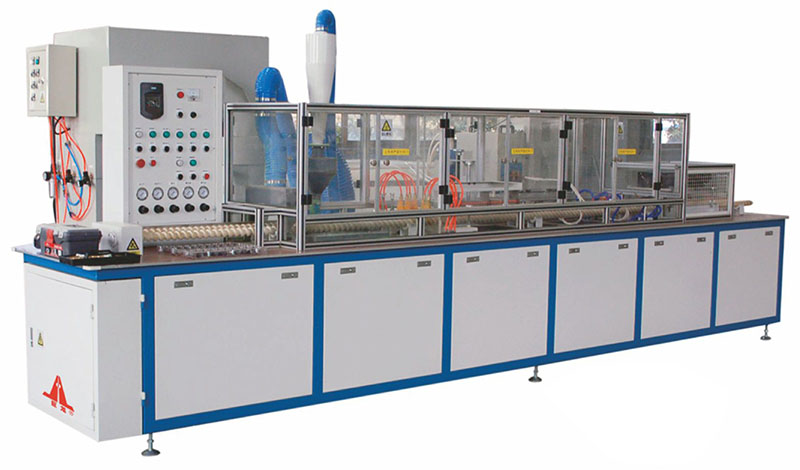

JLT-3G型 高频加热转子环氧绝缘涂敷机
JLT-3G Rotor High Frequency Heating Coating Machine
适用各种低压微电机、汽车摩托车电机转子的槽绝缘涂敷和预固化。采用双螺杆旋转输送使转子静电自动上粉,具有工艺套不易沾粉的好处,外圆及工艺套自动刮粉,高频感应自动加热固化,涂层结合强度高,加热速度快,粉末有自动回收装置,本机为预固化,用户需自备烘箱最终固化。
Applicable to all kinds of low-voltage micro-motor, motor vehicle motor rotor slot insulation coating and pre-curing. The use of twin-screw rotation of the rotor electrostatic powder automatically, with a set of technology is not easy to dip the benefits of powder, cylindrical and technology sets automatically scraping powder, high-frequency induction automatic heating curing, coating bonding strength, heating speed, powder automatic Recovery unit, the machine is pre-curing, the user needs to bring their own oven final curing.
技术参数/Technicai Parameters
电源电压Supply voltage | AC380±10% 50Hz |
气源压力Air pressure |
0.5~0.7MPa |
总功率Total power |
4kw |
螺杆长度Screw length | 3500mm |
调频范围Frequency range |
0~50Hz |
静电电压Electrostatic voltage | 0~60kv |
静电电流Static current |
≤200uA |
