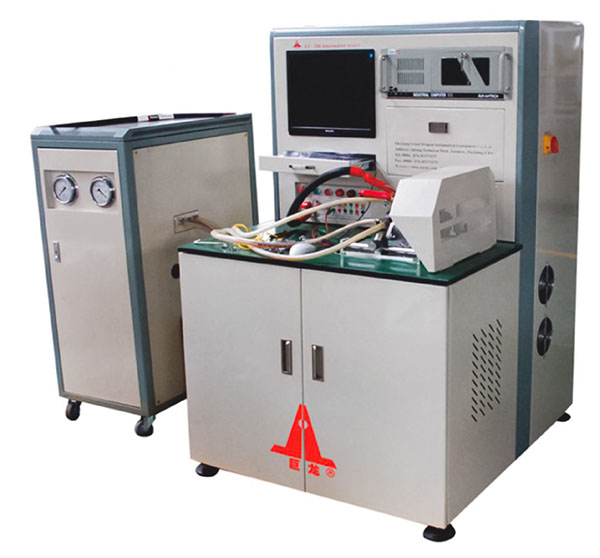

FC-200型 汽车发电机测试台
FC-200 Model Auto Dynamotor Testing Platform
适用于汽车发电机的整机性能测试,打印并储存特性曲线与参数。采用交流变频无级调速,工业控制微机、气动安装装夹装置、电子负载系统等组成。转速由发电机输出端测量无误差,负载为纯电阻特性无调制,并视用户需要加装真空泵测试。
Applicable to the car generator performance test, print and store the characteristics of curves and parameters.AC variable frequency stepless speed control, industrial control computer, pneumatic installation clamping device, electronic load system and other components. Speed measurement by the generator output without error, the load is pure resistance characteristics without modulation, and as the user needs to install a vacuum pump test.
技术参数/Technicai Parameters
电源电压Supply voltage |
AC380V±10%50Hz |
气源压力Air pressure |
0.5~0.7MPa |
电机转速Motor rotating speed |
0~18000r/min |
负载电流Load current |
0~200A |
工作电压Operating Voltage |
0~40V |
输出功率Output Power |
0~5kw |
特殊规格可定制Special specifications can be customized |
