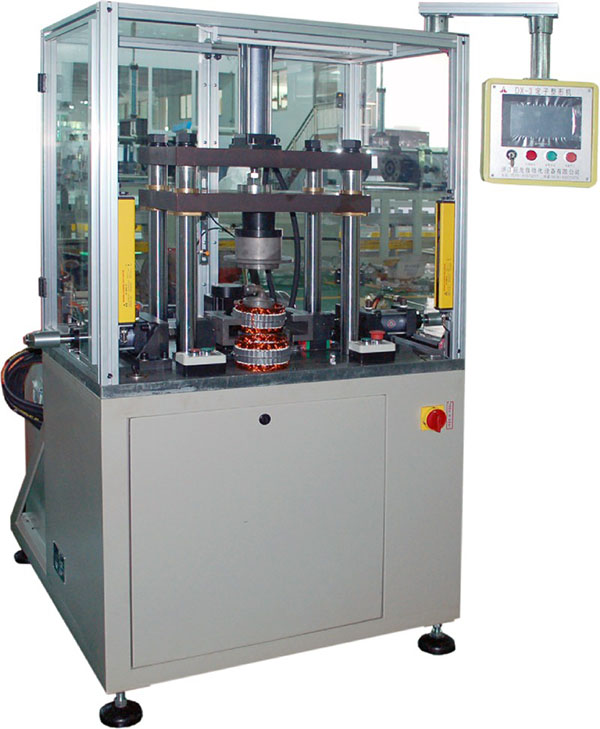

(水平对整加旋转/快速换模)DX-3型 定子整形机

上传时间:2019-06-03



DX-3 Model Stator Forming Machine



本机适用于发电机定子线圈嵌线后,线圈端部整形的专用设备。采用三菱PLC程控,中文液晶显示界面,本机有水平向心推进来整上下绕组的外形,由上下模整定子绕组内径,水平动作一致,后旋转180°再动作一次完成,更换工装仅四个零件,极为方便,适合多品种生产。



Suitable for generator stator coil embedded line, the coil end of the special equipment shaping.Mitsubishi PLC program control, the Chinese LCD display interface, the machine has a horizontal to the heart to promote the shape of the upper and lower winding, the stator winding stator diameter, Four parts, very convenient, suitable for multi-species production.



技术参数/Technicai Parameters


电源电压Supply voltage AC380V±10% 50Hz

总功率Total power

3kw

液压压力Hydraulic Pressure

0~7MPa
最大定子内径Max.Stator ID ≤Φ120 mm
最小定子内径Stator ID

≥Φ60 mm

定子叠厚Core thickness

15~60mm
