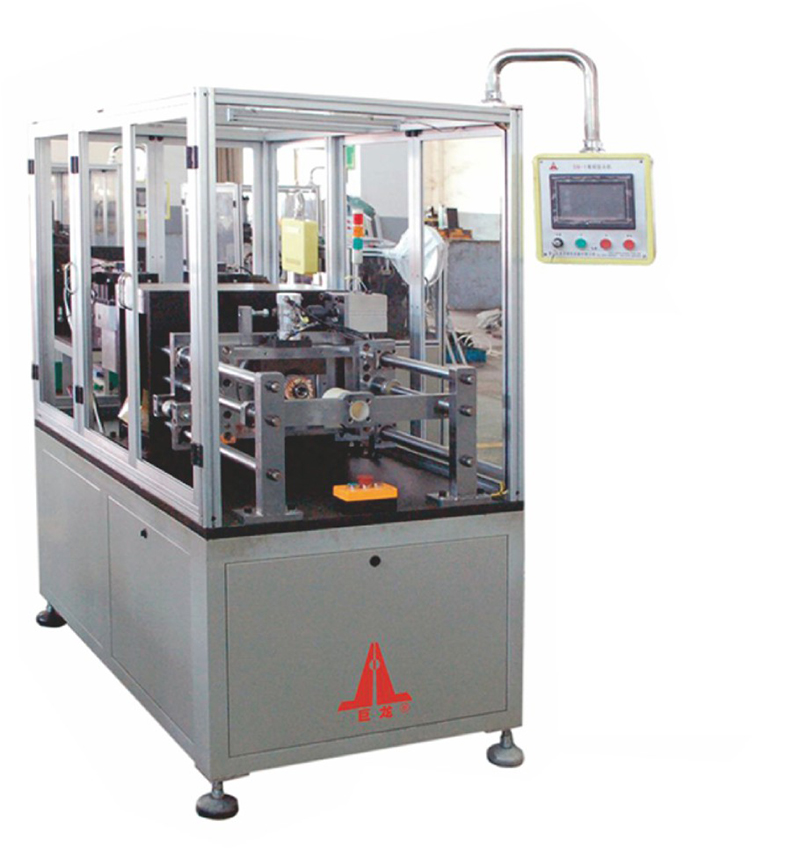

(双伺服扭头)SN-1S型 电枢扭头机

上传时间:2019-06-01



SN-1S Automatic Armature Winding Twisting Machine (servo control)



适用于汽车起动电机,双圈或多圈电枢绕组的外层线扭头并把扭好线头压入换向器槽内。采用三菱PLC程控,彩色触摸屏设定参数,伺服电机驱动带动齿轮转动模具扭头,定位精确,分自动、手动操作,扭头角度可调,使用简单方便。



Suitable for automotive starter motor, double or multi-turn armature winding of the outer wire turned and twisted thread into the commutator groove. Mitsubishi PLC program-controlled, color touch-screen set parameters, servo motor drive gear turn mold head,precise positioning, sub-automatic, manual operation, adjustable angle angle, easy to use.



技术参数/Technicai Parameters


电源电压Supply voltage AC380V±10% 50Hz

气源压力Air pressure

0.5~0.7 MPa

总功率Total power

4kw

电枢直径Armature diameter

Φ20~Φ120mm

电枢长度Armature length

50~500 mm

槽数Slots

12~60

  按用户产品定制Special specifications can be customized
