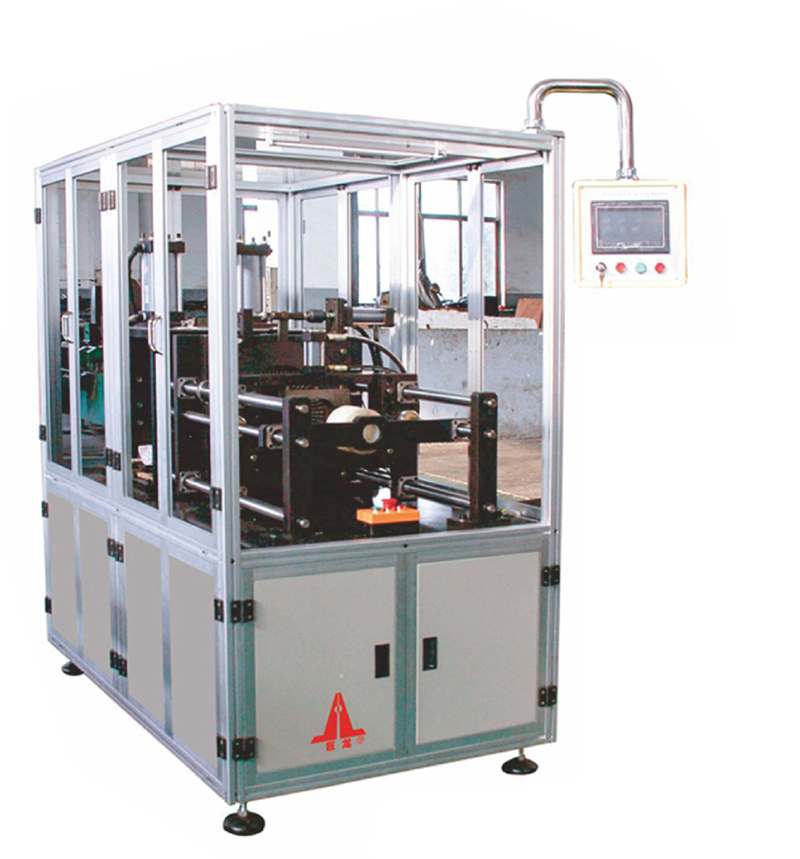

SN-1型 电枢扭头机

上传时间:2019-06-01




SN-1 Automatic Armature Winding End Twisting Machine (hydraulic control)



适用于汽车起动电机和类似电机、电枢绕组的自动扭头。采用液压齿条推动齿轮模具扭头,有线头根部自动推入定位爪,有效避免因扭头导致槽口变形产生绕组损伤而短路。三菱PLC程控,分自动、手动操作,扭转角度可调节。扭头质量可靠。



Suitable for automotive starter motors and similar motors, armature windings automatically turned.The use of hydraulic racks to promote the gear mold head, head of the roots automatically push into the positioning claws, effectively avoid the resulting deformation caused by the notch wound winding damage and short circuit. Mitsubishi PLC program control, sub-automatic, manual operation, twist angle can be adjusted.high quality.


技术参数/Technicai Parameters


电源电压Supply voltage AC220V±10% 50Hz

总功率Total power

0.5~0.7 MPa

液压压力Hydraulic Pressure

3kw

电枢直径Armature diameter

180~400 mm

电枢长度Armature length

≤15 mm

槽数Slots

≤280mm

  按用户产品定制Special specifications can be customized
