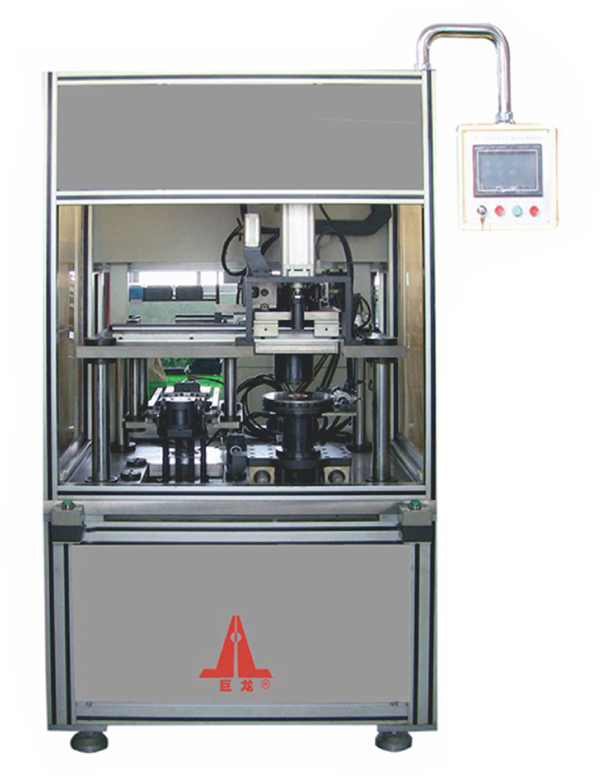

SZ-1型 自动扭形穿线机

SZ-1 Armature Coil Automatic Shaping and Inserting Machine

适用于弯U入杯(工装)后，人工移入本机对尾部进行扭形移位，人工放入插好纸的电枢，放在工作位上后，即自动同步将绕组一次性穿入铁芯，于弯U插入机配套工作，一人操作。

Applicable to after wire is bended as U shaped into the cup (tooling), manually moved into the machine to twist the tail, manually put the armature with paper inserted on the working station, then automatically synchronize the windings into the iron core at one time .The machine is a match for U-shaped bending machine and operated by one person.

技术参数/Technicai Parameters
