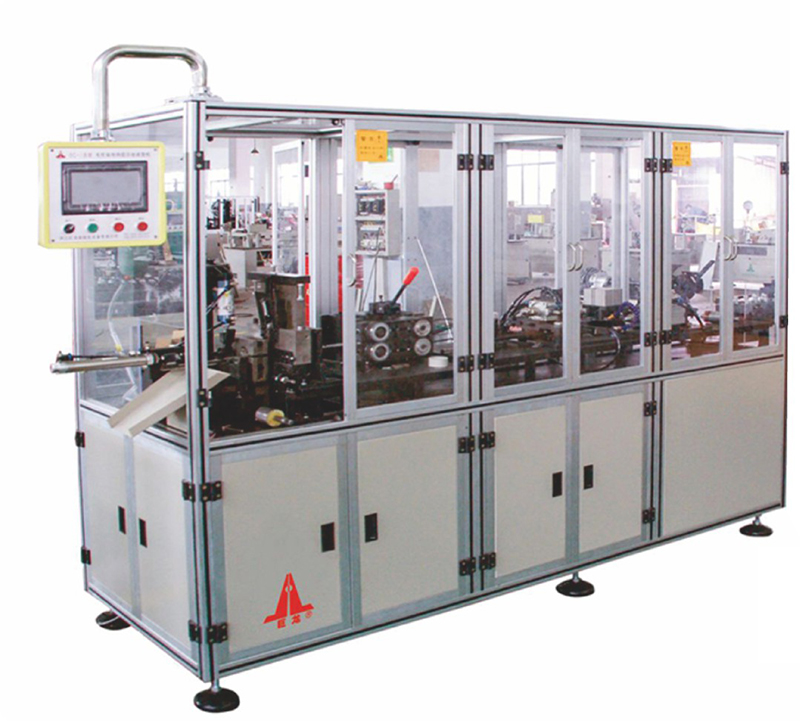

(劈拉自然成形)SC-3B型 扁线去漆皮自动成形机
SC-3B Stater Automatic Flat Wire Shaping and Stripping Machine
本机适用于汽车起动电机、电枢绕组自动成形的专用设备,并在原有基础上增加了线头自动剥漆功能。采用三菱PLC控制,触摸屏修改参数,伺服电机或气缸定长送线,由扁线校直机构、送线机构、四面去漆皮机构、切断机构、臂拉成形机构、产品拉出机构等组成,自动化程度高,使用简单方便。
Suitable for automotive starter motor, armature winding automatic forming of special equipment, and on the basis of the original increase in the thread automatically stripping paint function. Mitsubishi PLC control, touch screen to modify parameters, servo motor or cylinder fixed length to send lines, by the flat line straightening agencies, send line agencies, four sides to the patent leather body, cut off institutions, arm pull forming institutions, product pull out , A high degree of automation, easy to use.
技术参数/Technicai Parameters
电源电压Supply voltage | AC220V±10% 50Hz |
气源压力Air pressure |
0.5~0.7 MPa |
总功率Total power |
3kw |
送线长度Feeding length |
180~400 mm |
剥线长度Stripped length |
≤15 mm |
展开长度Coil length |
≤280mm |
线径范围Wire Range |
≤8mm2 |
生产效率Productivity |
15~18根/min |
