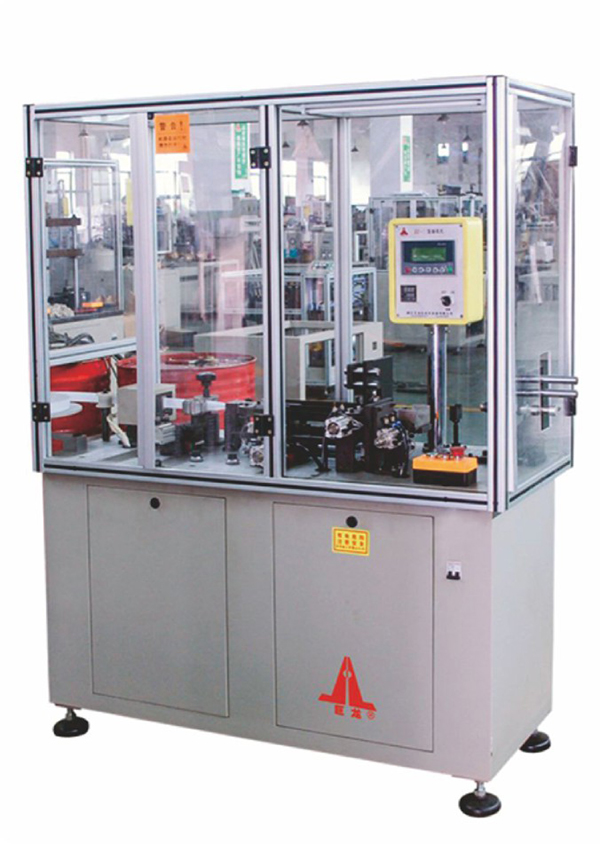

(卧式)ZZ-3型 S/B形自动插纸机

上传时间:2019-05-31


ZZ-3  S/B  Shaped Paper Auto-Inserting Machine



本机适用于起动电机较长转子铁芯的S形绝缘纸成形插纸的专用设备。采用三菱PLC程控,中文显示器或触摸屏修改参数,自动定长,送纸,加热,成形,切断,插纸一次完成,操作简单,方便,手动上下工件,一人可操作多台设备。



This machine is suitable for inserting S-shaped insulation paper of longer rotor core of starte.Heating, forming, cutting, insert the paper once to complete, simple, convenient, manual loading and unloadingthe workpiece, one person can operate multiple devices.


技术参数/Technicai Parameters


电源电压Supply voltage

AC220V±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

总功率Total power

2kw
铁芯厚度Core thickness ≤Φ100mm
转子外径Rotor OD

≤Φ120mm

适用槽数Slots 3~99
