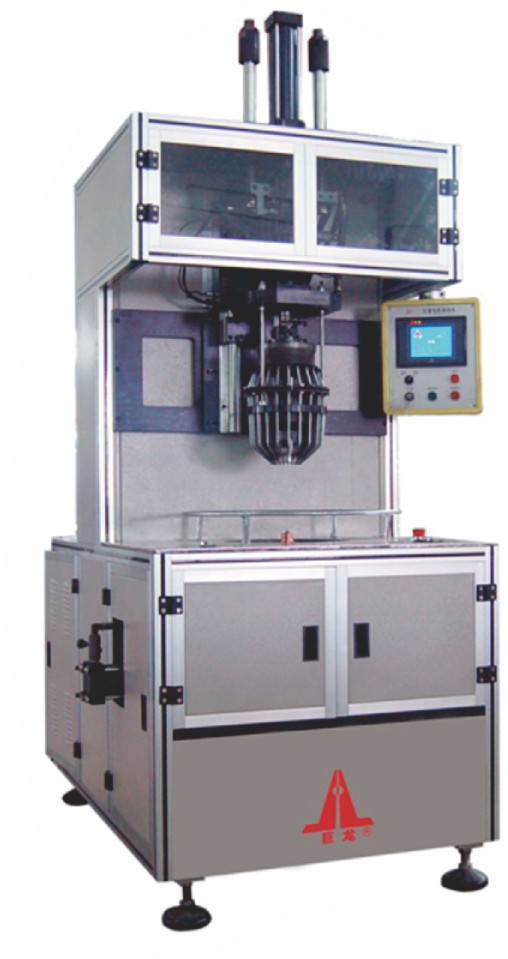

(双圈圆线绕组专用)SK-21型 电枢自动嵌线机
SK-21 Armature Double Coils Inserting Machine
本机用适用于开口槽双圈电枢绕组制成W形状后的自动嵌线。采用液压机械组合设计,三菱PLC程控、彩色触摸屏操作,人工将W形成形绕组放入工装后 .自动将成形后的W线圈嵌入转子铁芯和换向器槽内,无需扭头,直接完成,生产效率高。
Suitable for dry opening slot double-pole armature winding made of W-shaped automatic wire.Hydraulic mechanical combination design,Mitsubishi PLC control, color touch screen operation, manual W-shaped winding into the tooling automatically after the formation of the W-coil embedded in the rotor core and commutator slot, without turning directly to complete , High production efficiency.
技术参数/Technicai Parameters
电源电压Supply voltage |
AC380V±10% 50Hz |
气源压力Air pressure |
0.5~0.7 MPa |
总功率Total power |
3kw |
适用线径Wire range |
Φ1.5~Φ2.5mm |
适用槽数Slots |
21槽/29槽 |
电枢直径Armature diameter |
50mm |
电枢高度Armature height |
43mm |
液压压力Hydraulic Pressure |
0~7MPa |
