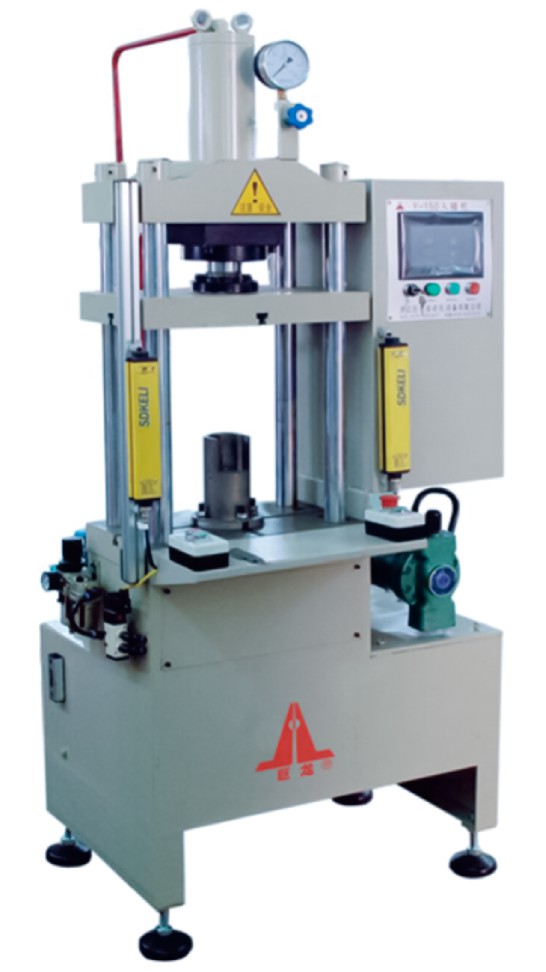

Y-150/350/400型 电机轴压入机

上传时间:2019-05-31



Y-150/350/400 Rotor Shaft Inserting Machine



本机适用于电机铁芯片入轴,轴承压装冲压拉伸以及各种机械压装。采用定级变量柱塞泵,节能效果好,双按键启动,自动上下行程开关控制,下压有加压时间和保压时间,进口PLC控制,触摸屏显示,有光电保护功能,自动压力测量,过大过小自动检测超差报警。



Suitable for the motor core pressing into the shaft, bearing press stamping stretch and a variety of mechanical pressure. Use classification variable displacement piston pump, energy-saving effect, two-button start, automatic control of the upper and lower limit switch, under the pressure of pressurized time and dwell time, imported PLC control, touch screen display, photoelectric protection, automatic pressure measurement,auto-dectect and alarm fuction


技术参数/Technicai Parameters


电源电压Supply voltage AC380V±10% 50Hz
总功率Total power 3kw
公称压力Nominal pressure 150/350/400KN
液压压力Hydraulic Pressure  0~7MPa
最大行程Maximum stroke 250mm
下行速度Downlink speed

26mm/s
